IDR-329 Static DC KiloGaussmeter:  Measures Static (DC) magnetic fields only (not AC magnetic fields).

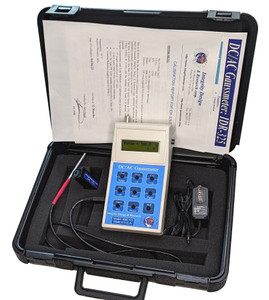

Comes with detachable Probe, Zero-Gauss chamber, Instruction manual, Calibration Report, hard carrying case, four AA batteries.

Typical Applications include Magnet classification, Analysis of magnetic circuitry and components, Magnetic Resonance Imaging (MRI), Measuring residual fields and speaker magnet assemblies, solenoids, etc.

  IDR-329-T Features and Specifications:

  • - Includes Calibration Certificate with data, traceable to NIST and to ISO-17025, at no extra cost
  • - Portable, Dimensions are: 5.8" x 3.6" x 2.5"
  • - Range: 20 G, 200 G, 2kG, 20kG
  • - Bandwidth: 68HZ at 3db
  • - Comes with 9v DC adapter & hard carrying case
  • - Analog Output: +/-200 mV DC FS
  • - 3 1/2 digit bipolar display
  • - Powered optional either by 9v battery or AC adapter
  • - 3% error guarantee, and often better (depending on strength of the magnet)
  • - Resolution: @ scale 20 G: 10 mG, @ scale 200 G: 0.1 G, @ scale 2 KG: 1 G & @ scale 20 KG: 10 G.
  • - Shielded Hall effect transverse probe w/ 4' shielded cable
  • - 2 Years Parts & Labor warranty against manufacturing defects.
  • - Certificate of calibration with data sweep
  • - Active Area: 0.005" x 0.005"
  • - Made in the USA.
2-year warranty
